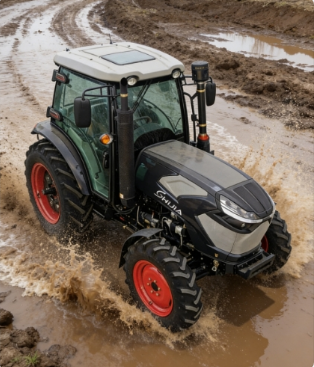

TR90 Horsepower Medium-Sized Wheel Tractor
Factory-direct from Chinese manufacturers, the TR90HP wheeled tractor is the core farming equipment for small and medium-sized farms, family farms and agricultural cooperatives. Powered by Dongfanghong, it features perfect power adaptation, all-scenario versatility and high economic efficiency. As a dual-purpose tractor for paddy and dry fields, it is suitable for plains, hills and greenhouses alike. Dubbed the "all-rounder" in agricultural production, it effortlessly handles the full-process operations of plowing, sowing, harvesting and transportation, greatly boosting farming efficiency and reducing labor intensity. It is the top choice of 90HP medium farm tractor for farmers worldwide.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Four Core Selling Points, Precisely Meeting Farming Demands
Factory Direct Supply from Chinese Tractor Manufacturers
High Cost-Effectiveness
Powerful & Fuel-Efficient
Torque reserve coefficient ≥25% for easy heavy-load operations; Equipped with an optimized Dongfanghong engine, fuel consumption is reduced by 12% compared with similar models, maximizing fuel economy.
All-Scenario Adaptable
Compatible with various agricultural implements, realizing plowing, sowing, harvesting and transportation with a single machine; Dual-purpose for paddy and dry fields, and adaptable to multi-terrain farming in hills, plains and greenhouses.
Ultra-Flexible Operation
Full hydraulic steering, with a turning radius of ≤4.1 meters for some models, enabling easy U-turns in small and medium plots; The special 90HP tractor for greenhouses is better adapted to narrow spaces for higher operation efficiency.
Cost-Effective
Moderate purchase and operation costs, durable core components, low post-maintenance costs and attractive return on investment.
Core Technical Configuration, Sturdy, Durable & High-Efficient
✅Power System
Standard equipped with a Dongfanghong four-cylinder turbocharged intercooled diesel engine, trusted by millions of farmers worldwide. The water-cooled design is suitable for tropical climates and long-hour operations, featuring low failure rate and long service life. Optimized for fuel efficiency, it cuts fuel consumption by 12% compared with similar models without compromising peak performance.
✅Transmission System
Mainstream 12+12 shuttle shift for on-demand speed adjustment; 4WD (Four-Wheel Drive) as the main configuration for 90HP tractors with strong traction and excellent adhesion, with economic 2WD (Two-Wheel Drive) optional; Dual-action clutch for independent control of power take-off (PTO) and easy operation.
✅Hydraulic & Suspension System
Lifting capacity of 16-18kN, compatible with heavy agricultural implements; 2-4 groups of multi-way valves optional for high expandability; Standard equipped with a vertical double-cylinder forced lift device supporting forced lifting/lowering and floating functions; Rear Category Ⅱ three-point hitch for a firm connection with plows, harrows, seeders and other implements, achieving one machine with multiple functions; The hydraulic system has strong load-bearing capacity, suitable for heavy-load operations.
✅Overall Machine & Tires
Minimum operating weight of 2900kg, with a stable body to prevent slipping, ensuring high plowing precision and adaptability to heavy-load transportation; Standard equipped with special wear-resistant tires (front: 9.5-24, rear: 14.9-30), which are wear-resistant, anti-slip and puncture-proof, easily handling muddy and gravel roads; Special tires for paddy and dry field tractors reduce post-replacement costs.
Basic Dimensions & Mass Parameters
|
Item |
Specific Parameter |
|
Type |
4×4 |
|
Overall Dimensions (L×W×H, mm) |
4285×1910×2810 |
|
Front Wheel Tread (mm) |
1450 |
|
Rear Wheel Tread (mm) |
1530 (usual), 1630, 1730, 1830 |
|
Wheel Base (mm) |
2273 |
|
Minimum Ground Clearance (mm) |
335 (the bottom of front driving axle) |
|
Minimum Operating Mass (kg) |
3580 |
Engine & Tire Parameters
|
Item |
Specific Parameter |
|
Engine Model |
YTO |
|
Engine Type |
Vertical, water cooled, 4-stroke, turbocharged |
|
Rated Power (kw) |
66.1 |
|
Rated Speed (r/min) |
2300 |
|
Fuel Type |
Diesel Oil |
|
Front Wheel Tire Specification |
8.3-24 |
|
Rear Wheel Tire Specification |
14.9-30 |
Products DescriptionTransmission & Suspension System Parameters
|
Item |
Specific Parameter |
|
Clutch |
Dry-friction, Dual stage |
|
Steering System |
Hydraulic type |
|
Transmission Box |
12+12R Shuttle Shift |
|
Suspension Type |
Post Positioned Three-point Suspension Catalogue II |
|
PTO Type and Speed (r/min) |
Post-position, independent, 540/760 |
|
PTO Spline Size |
φ35 Rectangle Spline with 6 teeth |
Global Reputation & Recognition, The Top Choice for Farms in Many Countries
This Chinese-made TR90HP wheeled tractor is exported to Ghana, Indonesia, Serbia and many other countries, becoming the main farming equipment for local farms. It precisely addresses the four core pain points of farmers worldwide: frequent failures, high fuel consumption, poor terrain adaptability and single function. Whether for small family farms or large-scale agricultural bases, it easily handles all types of farming operations, saving time and costs. China's exported 90HP medium-sized tractors have won recognition from farmers in many countries.
Scientific Buying Guide, Precise Scenario Matching
✅Choose by operation scenario: Select 90HP tractors with waterproof front axles for paddy fields, reinforced chassis models for dry fields, and low-body/short-wheelbase special 90HP tractors for greenhouses.
✅Choose by core configuration: Prioritize models with Dongfanghong brand engines, full hydraulic steering and dual-action clutches.
✅Choose by terrain needs: Select 4WD 90HP tractors for complex terrains, and 2WD economic models for conventional plain operations; Creeper gears and multi-way valves are optional as needed.
Why Choose Our 90HP Tractor?
✅ Factory Direct Sales: No middlemen for more competitive purchase costs, with support for customized personalized configurations.
✅ Brand Guarantee: Powered by core Dongfanghong engines, verified by the global market for stability, durability and low failure rate.
✅ Quality Control & After-Sales Service: Strict factory inspection for the whole machine, adaptable to global farming environments.
✅ High-Efficiency Adaptability: All-terrain and all-operation scenario compatible, realizing one machine with multiple functions and minimizing farm equipment investment costs.
Contact Us
Say goodbye to farming troubles such as insufficient power, difficult terrain traversal and inability to handle heavy-load operations! This 90HP 4×4 wheeled tractor, with its powerful power and solid configuration, creates a cost-effective farming solution for farmers worldwide. Inquire now to get the exclusive quotation + detailed parameter manual of the TR90HP tractor and unlock customized farming configuration solutions! Maximize the cost performance of your 90HP tractor.
